New 2026 Honda Pioneer 520
View All Close

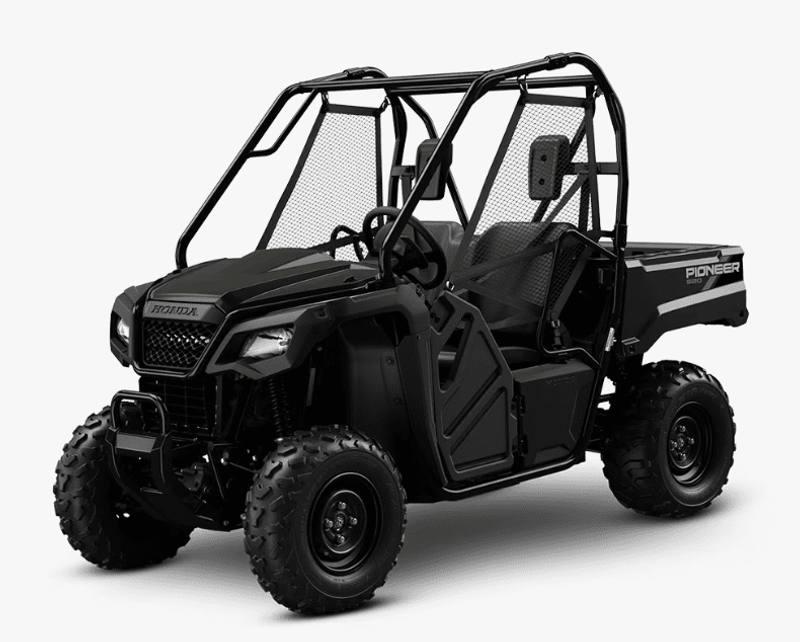

New 2026 Honda Pioneer 520

Pricing Details
MSRP: $10,999

Martin Moto

1037 Unger Ln. Boyertown, PA 19512

Call Us: (610) 369-3120

Vehicle Saved!

Vehicle Details

  • Stock #: H01272
  • VIN: 1HFVE0746TA101272
  • Engine: 518cc liquid-cooled single-cylinder four-stroke
  • Exterior Color: BLACK FOREST GREEN

IN STOCK NOW

Dealer Comments

Destination Charges May Apply

Tax and DMV fees depend on your state.

Assembly, set-up, and delivery to your home (within 100 miles) is FREE!

Pricing may change due to OEM price adjustments throughout the year

Test Ride
Get Pre-Approved
Check Availability

Similar Vehicles

Small footprint, bigger capabilities
Compact yet mighty, the updated 2026 Pioneer 520 offers exceptional versatility with its 518cc engine, 50-inch width, and 1000-pound towing capacity. Now with increased top speed, standard under-seat storage, and improved heat management to keep the cabin cooler, it's perfectly designed to fit your life's adventures.
  • 518cc liquid-cooled single-cylinder engine
  • Updated gearing
  • Smoother shifting
  • Under-seat storage
  • Compact 50-inch width
Highlighted Features
  • Powerful 518cc engine: This 518cc engine is optimized for low-rpm torque and features electronic fuel injection, providing improved performance in cold weather and at high altitudes. The five-speed automatic transmission provides ample pulling power.
  • Updated gearing: For 2026, we’ve refined the front and rear final-drive and transmission gear ratios. The result is a 23-percent increase in top speed, elevating the performance of the already torquey engine.
  • Tilt/dump bed: The tilt/dump bed measures 38.7" x 25.9" x 9.8" and can carry up to 450 pounds. The assist strut makes dumping easy, and the bed accepts a host of Pro-Connect™ system accessories.
  • Compact 50-inch width: The 50-inch width is ideal for narrow trails and allows for easy storage, while also fitting in most full-sized pickup truck beds. The front locking differential lets you choose between 2WD and 4WD, optimizing for the conditions and terrain to provide either lighter steering or maximum traction.
Engine
  • Engine Type: 518cc liquid-cooled single-cylinder four-stroke
  • Bore And Stroke: 96.0mm x 71.5mm
  • Compression Ratio: 9.5:1
  • Valve Train: OHV; two valves per cylinder
  • Induction: Electronic fuel injection (PGM-FI); 36.0mm throttle body
Drivetrain
  • Clutch: Automatic
  • Transmission: Five-speed automatic transmission with AT/MT modes
  • Driveline: Direct front and rear driveshafts
Chassis Suspension Brakes
  • Front Suspension: Independent double-wishbone; 5.8-inch travel
  • Rear Suspension: Independent double-wishbone with preload adjustability; 5.9-inch travel
  • Front Brakes: Dual 200.0mm hydraulic discs
  • Rear Brake: Single 170.0mm hydraulic disc
  • Front Tires: 24 x 8-12
  • Rear Tires: 24 x 10-12
Dimensions
  • Length: 105.0 inches
  • Width: 50.0 inches
  • Height: 71.2 inches
  • Wheelbase: 73.0 inches
  • Bed Capacity: 450.0 pounds
  • Towing Capacity: 1000.0 pounds
  • Ground Clearance: 8.5 inches
  • Turning Radius: 12.8 feet
  • Curb Weight: 1060 pounds - Includes all standard equipment, required fluids and full tank of fuel.
  • Fuel Capacity: 4.1 gallons
Other
  • Safety: Recommended for Drivers 16 years of age and older.
  • Available Colors: Hero Red, Black Forest Green, Cactus Green
  • Model ID: SXS520M2
  • Seating Capacity: 2
Factory Warranty Information
  • Duration: Transferable, one year included, limited warranty
  • Optional Extended: Extended coverage available with a HondaCare® Protection Plan
